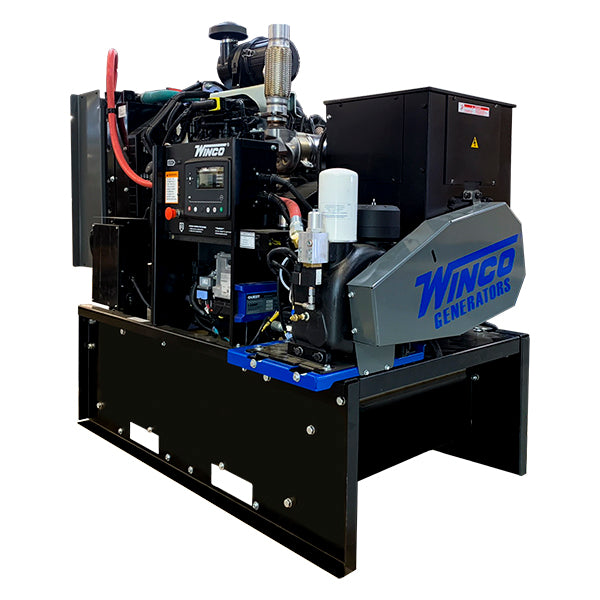

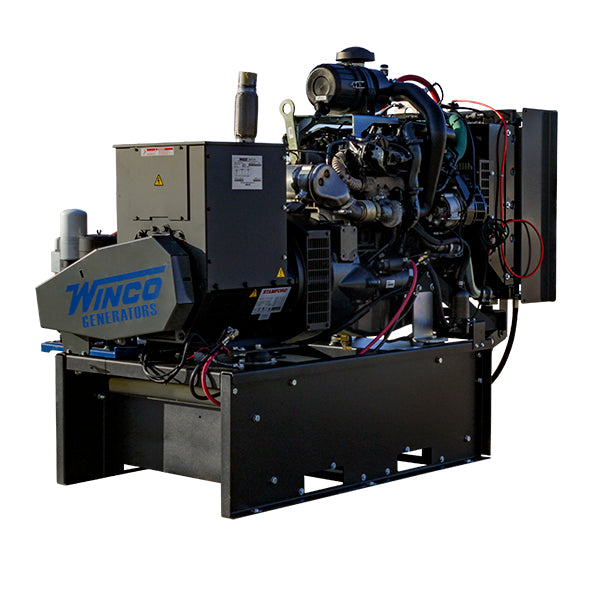

DE4040 Winco Diesel Generator Open Skid (54 Gal. tank option available)

DE4040 Winco Diesel Generator Open Skid (54 Gal. tank option available)
DE4040 Winco Diesel Generator Open Skid (54 Gal. tank option available) DE4040 Winco Diesel Generator Open Skid (54 Gal. tank option available) DE4040 Winco Diesel Generator Open Skid (54 Gal. tank option available)

Winco

$ 25,678.00
SKU: DE4040-1
Currently out of stock, contact us for lead times

Product Features

DE4040F4

We are excited to enter the Tier IV Final market! Our DE4040 has new features, such as a standard DSE7310 controller, the new FPT F5 series engine, service access on one side, Electronic Common Rail, and radiator ducting, to name a few.

3.4L Engine
     We all know the saying that “there is no replacement
     for displacement.” A lot of engine manufacturers are
     pushing really small engines into this range for TIER IV
     final. We think a little more engine is key for long life
     and quick responses to load changes. There isn't Urea or
     a need to shutdown for regens with this FPT F5 series
     engine with DOC-PMCAT.
Cummins Industrial Generator End
     With automatic voltage regulation.
Electronic Common Rail
     Excellent frequency control and load pick-up.
Radiator Ducting
     Allowing you to get the unit closer to your venting system,
     making your installation easier and helps reduce air
     recirculation.
Fork Pockets
     Convenient fork pockets integrated into the unit,
     giving you the ability to lift from all directions
Starting Battery Included
     12V Group 24 650 CCA Battery
Battery Charger
     A smart trickle battery charger comes standard.
DSE7310 Controller
     Digital controller allows for remote start, engine
     code reader, with advanced metering, safeties
     and shutdowns to protect your investment



Additional Information

Standby Watts

120/240 1-PH: 45,000
120/208 3-PH: 49,000
120/240 3-PH: 49,000
277/480 3-PH: 49,000
346/600 3-PH: 49,000
Prime Watts

120/240 1-PH: 40,500
120/208 3-PH: 44,100
120/240 3-PH: 44,100
277/480 3-PH: 44,100
346/480 3-PH: 44,100
Voltage Output

120/208 Volt Three Phase, 120/240 Volt Single Phase, 120/240 Volt Three Phase, 277/480 Volt Three Phase, 346/600 Volt Three Phase
Standby Amps

120/240 1-PH: 187
120/208 3-PH: 170
120/240 3-PH: 147
277/480 3-PH: 73
346/600 3-PH: 59
Prime Amps

120/240 1-PH: 168
120/208 1-PH: 153
120/240 3-PH: 132
277/480 3-PH: 66
346/600 3-PH: 53
Voltage Regulation

AVR – AS440 +/- 1%
Engine

Brand: FPT
Model: F5 C
Emissions

EPA Prime
Dimensions

75.07" x 38.04" x 46.86"
Weight

2,000 lbs
Unit Warranty

1 year/2000 hours
Assembled In

USA

Spec Sheet                Outline Drawing

     Manual                          Manual
