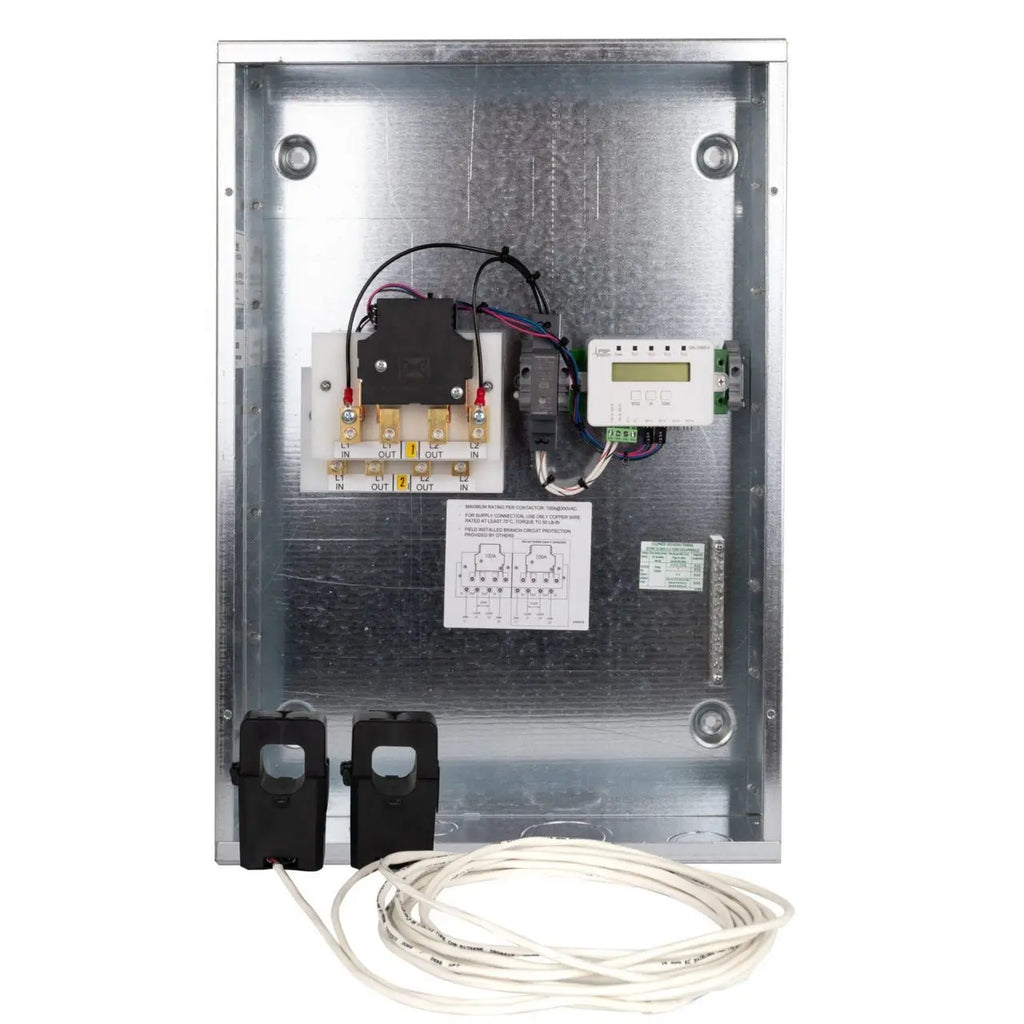

SAK-2-100MS-M / SAK-2-100-MSD-M Electric Vehicle Charger Load Management for 2 EV Chargers up to 100A Each

When a homeowner wants to add a new EV Charger (or any 2 loads up to 100A), to an existing main or sub-panel that is at max capacity, the SAK-2-100MS-M and SAK-2-100MSD-M-100 offer the customer a reliable and affordable solution, without having to pay thousands of dollars for a full panel upgrade.

Allows 2 loads up to 100A to be added to any main service panel or sub panel that is at risk of overload, or will become overloaded, when a new load is introduced. The onboard intelligent micro-controller monitors the load on the existing panel and only allows the added load access to the panel when capacity is available. SAK-2-100MS-M installation requires two open breakers or quad breaker. SAK-2-100MSD-M-100 comes with two 100A internal disconnects.

• Manages loads of 2 EV chargers up to 100A each
• Can be installed on any main or sub panel up to 400A to add managed loads up to 100A continuous.
• Adapts to any application using the precision field adjustable set points. These maximize access to the added load and prevent looping.
• Field adjustable set points include: panel overload amperage, overload inrush cutoff delay, restore amperage threshold, load restore delay time and line-loss compensation adjustment for CTs. Controller LCD displays actual real-time amperage on panel.
• Controller is self-powered from line voltage. External power supply not required. Can control 120VAC single pole or 208–240VAC double pole circuits.
• Prevents overloading and saves costly upgrades to panel and/or electrical infrastructure.
• Utilizes a magnetic latching relay for long-term reliability, and box-lug in and out terminals for ease of installation.
• 2 year warranty
• Comes standard in NEMA 1 enclosure
  (NEMA 3R option also available)
• SAK-2-100MSD-M-100 features two 100A internal disconnects
