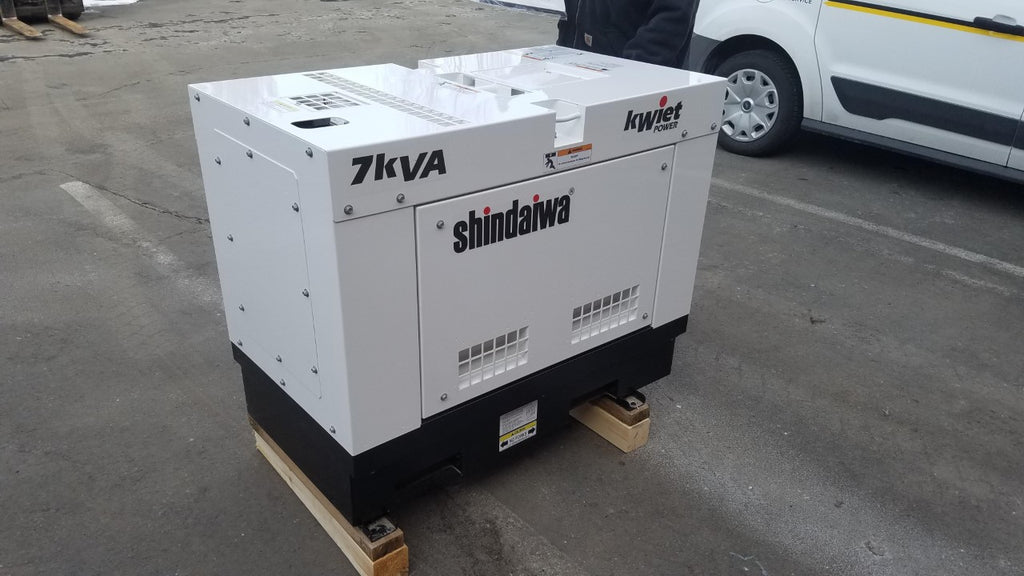

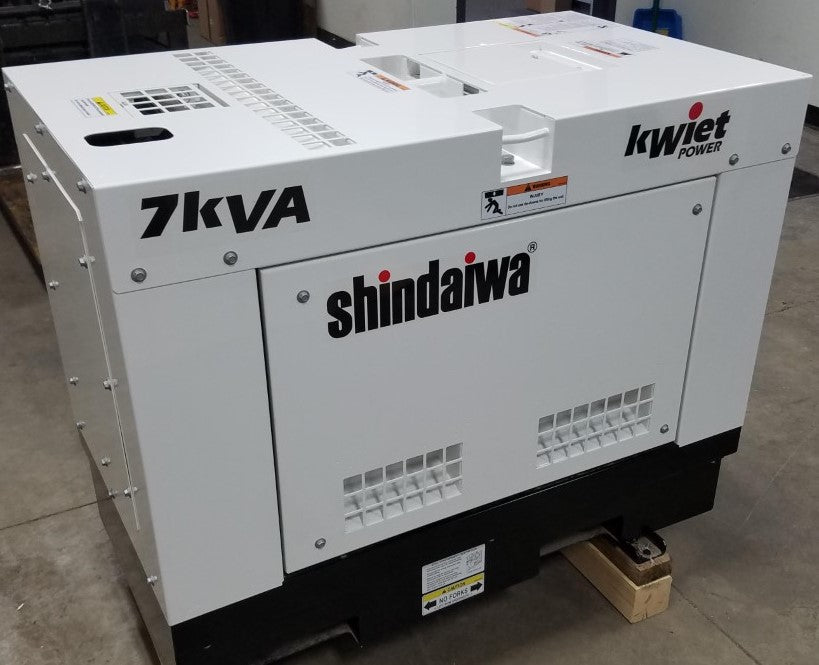

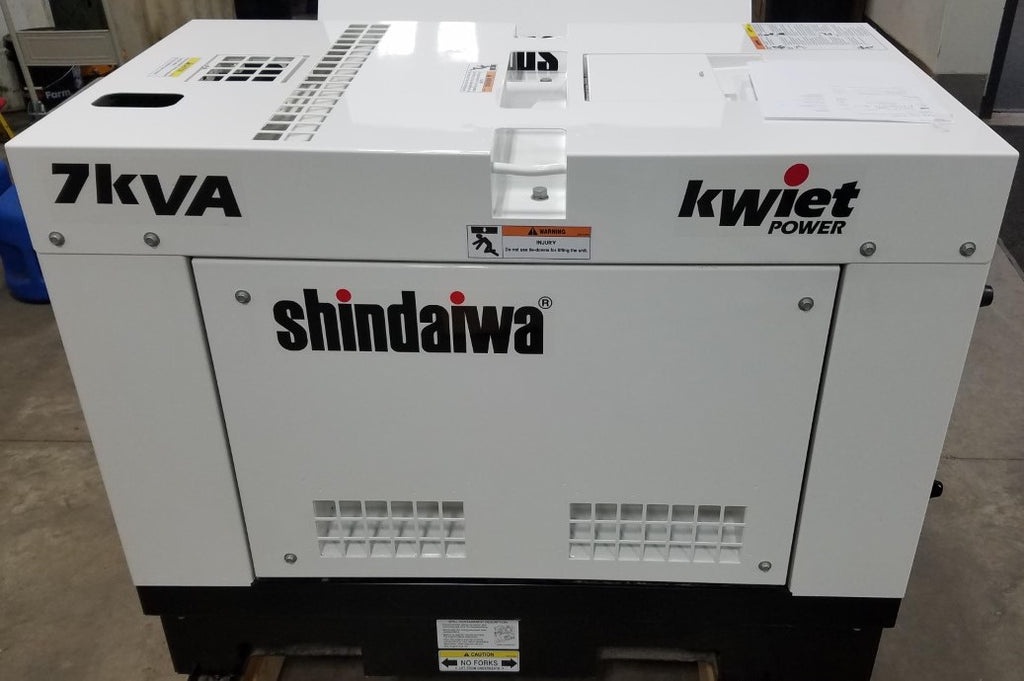

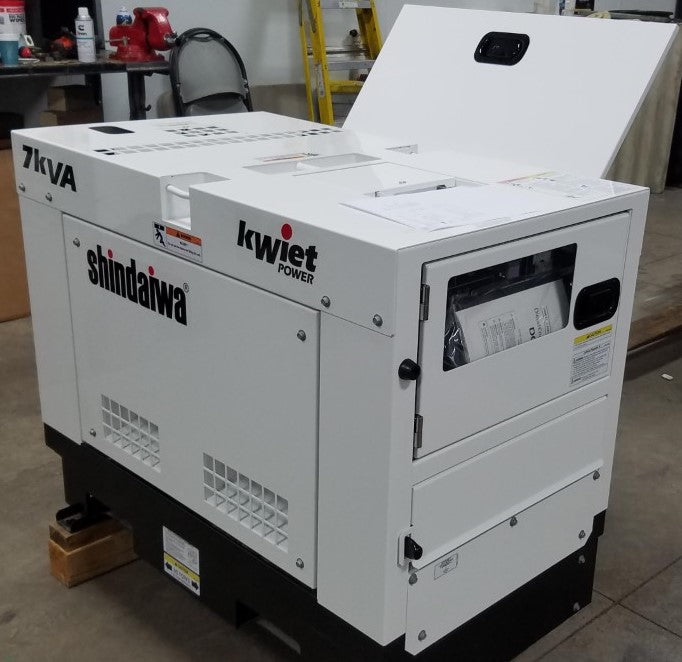

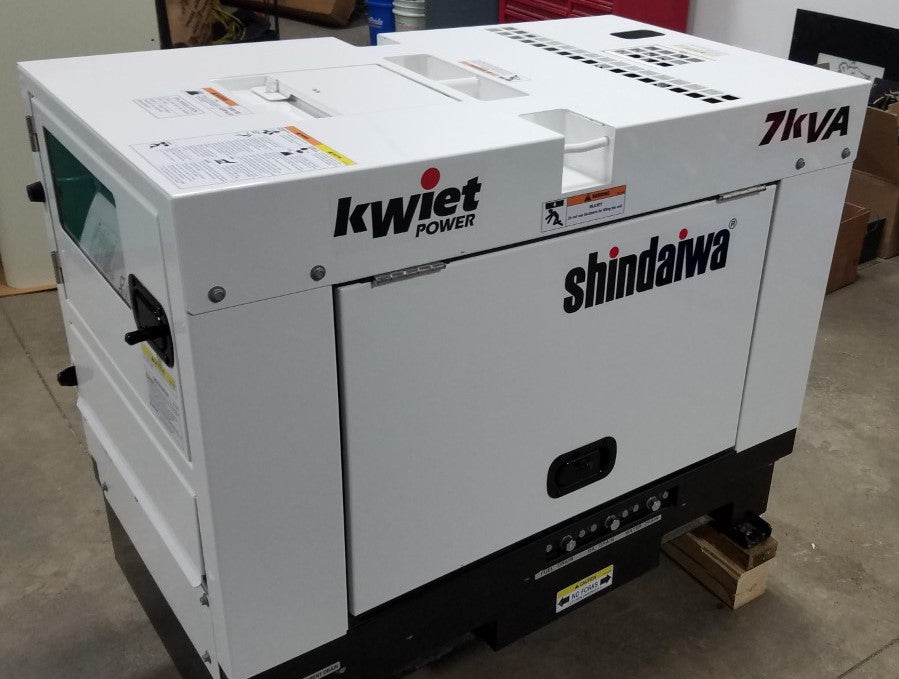

Shindaiwa 7kVA kWiet Power Generator
Description
Alternator
- Generator Type: Revolving Field Brushless
- Armature Connection: ZigZag-W
- Rated Frequency Hz: 60
- Rated Output (Prime) kVA: 6.5
- Rated Output (Prime) kW: 6.5
- Standby Output kVA: 7.2
- Standby Output kW: 7.2
- Rated Voltage V: 240/120
- Rated Current A: 27/54
- Power Factor: 1.0
- Insulation: F
- Excitation: Self-Excitation (brushless)
- No. of Pole: 2

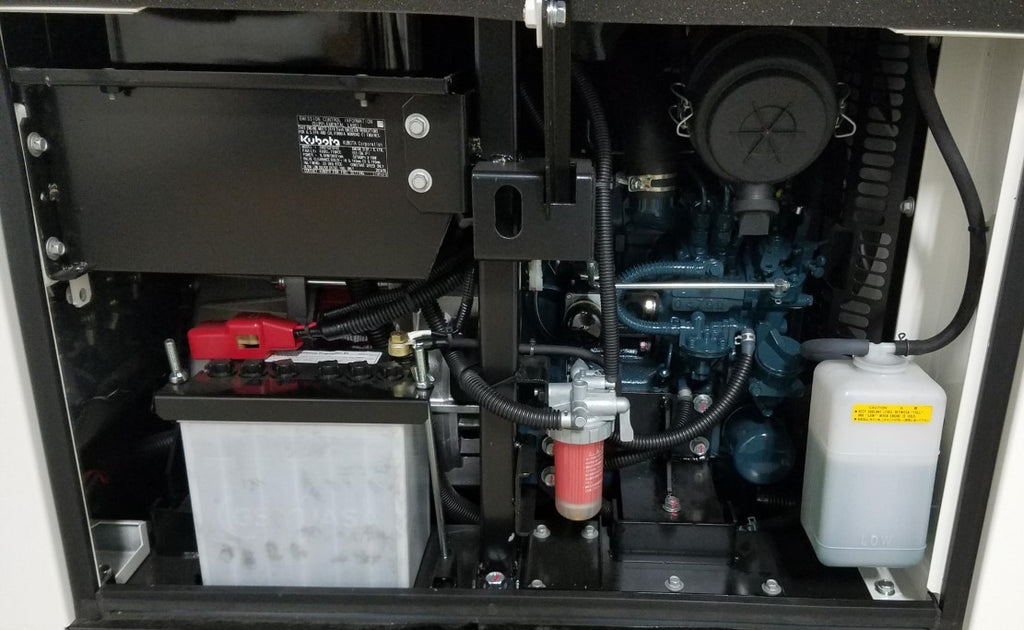

Engine
- Type: Vertical Water-Cooled 4-Cycle Diesel
- Model (Manufacturer): Z482 Tier 4 Final (KUBOTA)
- No. of Cylinder (bore × stroke) mm: 2 (67x68)
- Rated Output (continuous) hp: 11.3
- Rated Speed rpm: 3,600
- Displacement cu.in./L: 29/0.479
- Combustion System: Indirect Injection
- Cooling Method: Water Cooled
- Starting Method: Electric
- Fuel: No.2-D,S15 EPA Regulation
- Lubricating Oil: API Service-Type CD Class
- Fuel Tank Capacity gal./L: 9.5/36
- Lubricant Volume gal./L: 0.69/2.6
- Coolant Volume gal./L: 0.69/2.6 (including sub-tank 0.16/0.6)
- Starting Motor Capacity V-kW: 12-0.95
- Charging Alternator Capacity V-W: 12-150
- Battery Capacity V-Ah: 12-36
Unit
- Length in./mm: 43/1,095
- Width in./mm: 25/640
- Height in./mm: 35/895
- Dry Weight lb./kg: 739/335
- Net Weight lb./kg: 827/375
Engine
- Engine Type
- Vertical Water-Cooled 4-Cycle Diesel
- Horsepower
- 11.3 hp
- Displacement
- 29 cu.in. (0.479 L)
Dimensions
- Length
- 43 in. (1,095 mm)
- Width
- 25 in. (640 mm)
- Height
- 35 in. (895 mm)
- Weight
- 739 lb. (335 kg)
Other
- AC Output
- 6.5 kW (6.5 kVA)
- Fuel Tank Capacity
- 9.5 gal. (36 L)
